◆ Platform Dimensions: 76mm x 76mm, 80mm x 110mm, 92.5mm x 114.5mm, Φ=46.0mm, Φ=80.0mm
◆ Tilt Axis: θx, θx-θy, θx-θy-θz
◆ Travel Range: 6°-10°
◆ Driving Method: Micrometer Meter, Adjust Screw
◆ Accuracy: ≒ 0.01°
Product List：
Description：
1. M-IS Series are the single axis stages. This series allows pitch-direction adjustment and the M6 and M4 tapped holes can be easily mounted with most components.

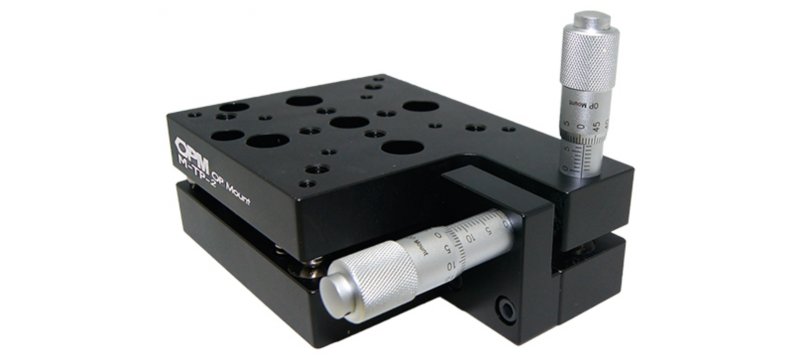

2. M-TP series allows pitch, yaw, and roll adjustment. Fine screw drive type and micrometer drive type are both available. As the same 2-axis-travelling stages, driven beneath the platform, TP-1 could sustain most optical system, while the side driven type TP-2 are more convenient in operation but the micrometer sometimes blocks.
3. M-TRS series allows pitch, yaw, and roll adjustment. The outstanding design of M-TRS let them meet both requirements of functional and convenient.
Note:
The estimated lead time will be 5-10 days. For detailed lead time, pleasecontact us.
