SaniLucモジュール - 40x40mm

SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm
SaniLucモジュール - 40x40mm

The SaniLuc module is the crystallization of IADIY's combination of photoelectric and mechanical technology. It uses UVC ultraviolet rays and nanosilver photocatalyst to achieve high-efficiency sterilization effects.

Options
SaniLuc module provide two type of option: Premium and Cost Effective

Product IDType
Scale
UVC LED Quantity
Photocatalyst Mesh
SL40PRPremium
40x40mm2pcs2pcs
SL40CECost Effective
40x40mm1pcs2pcs
Modularize Design

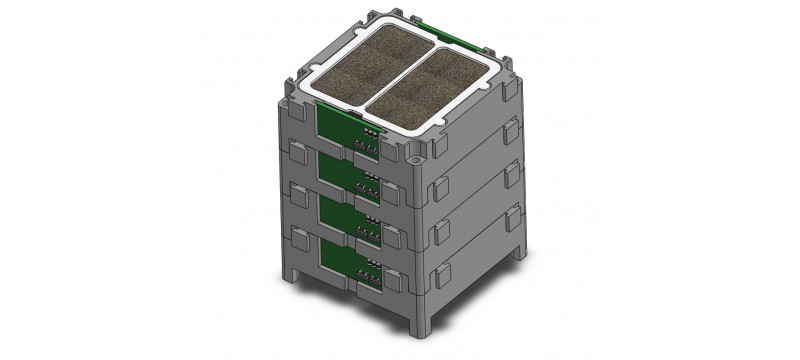

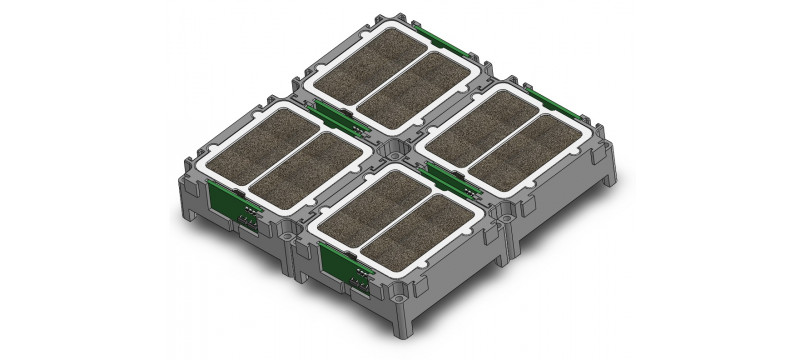

Modularize design can be combined to different dimension size for product development easily. Parallel combined can increase effective area, erticalcombined can improve sterilization efficiency.
Evaluation Kit
We also provide SaniLuc Kit for evaluation and development.

Features:

  • Non traditional filter technology, truly effective sterilization (click here for Filter vs SaniLuc)
  • Zero Waste, effective for life without consumables

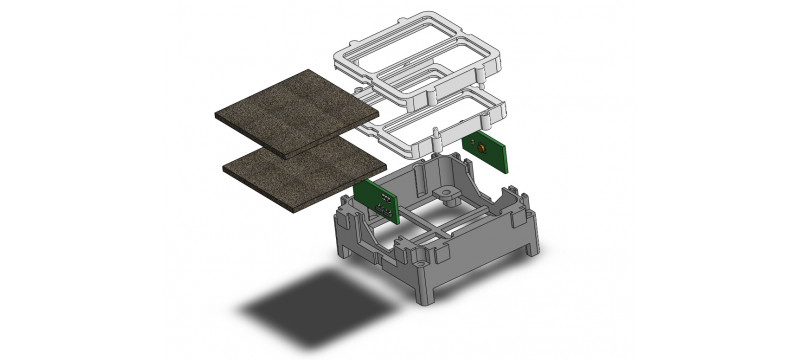

  • Safe usage, patented mechanical design, UVC tight packaging (click here for patent Information)
  • Series and parallel mechanism extension design
  • SGS certification

SGS Test Report:

 Aspergillus brasiliensis sterilization report

 Formaldehyde decomposing report

 Nicotine decomposing report

 Staphylococcus aureus elimination report
SaniLuc Module
Dimesion 47.8 x 47.8 x 19 mm
Weight Premium: 25g
Cost Effective: 18g
LED Driving Voltage 7.0~7.2V
Operation current 120~150mA per LED
Power Consumption 0.8W per LED
UVC Wavelength 265nm ~ 275nm
UVC Light Intensity 15mW per LED
Radian Irradiation 1.5 mW/cm2 per LED
UVC LED Quantity Premium: 2pcs
Cost Effective: 1pcs
Effective Space of one module 5m3 for 1.5~2cycle in 30min
Operating Temperature - 40°C to + 60°C
Storage Temperature - 40°C to + 85°C
SaniLucモジュール - 40x40mm

製品特徴

- Module scale: 40x40mm
- Module type: Premium, Cost Effective
- UVC LED quantity: 2 for Premium, 1 for Cost Effective
- Photocatalyst Mesh: 2 pics
- GH1.25 connector for UVC LED PCBA

- LED Driving Voltage: 7.0~7.2V
- Power Consumption per LED: 0.8W
- Effective Space of one module:
  5 cubic meter for 1.5~2cycle in 30min

Datasheet
に基づく 0 レビュー. - レビューを書く
から始まる ¥3,700
  • 配達時間: 供給可能,7~21日
  • 製品番号: SL40

利用可能なオプション

選択解除
カートに追加
すぐ購入 お問い合わせ
ウィッシュリスト 比較する
ノート：

お客様の要求としてカスタマイズの対応もできます。

お気軽に お問い合わせください。

タグ: Air Purification
